VERSATEQ
Our multifunctional waist transmitter
Our innovative midrange solution for waist transmitters featuring a smooth and ergonomic design. Approximately 24 centimetres wide. Fitted with Handlebars that follow the natural curves of the hands. To guarantee your safety, each of the VersaTEQ transmitters is fitted with an independent certified PLe/CAT 3, SIL3 stop function. VersaTEQ is robust, versatile and flexible for many operations. Based upon 60 years of knowledge, Tele Radio developed this range of products for hydraulic, mobile and industrial applications.
UNIQUE TECHNOLOGY
We believe in innovation. Tele Radio has developed various applications that allow you to better operate and control your equipment using the latest technology. The Tele Radio VersaTEQ has, among other things, the following, special features and possibilities.
Active antenna
The active antenna can also serve as a stand-alone repeater. This increases the range between transmitter and receiver substantial. It makes it possible to use this system in very demanding circumstances, like mining, in mountainous areas, or in big buildings, without losing signal.
RFID control
The RFID is a wireless technique for recognition of a unique code of the system, product or user. The settings of a user can be saved on a smartcard with RFID which is recognized by the system during usage. Different user levels can be set up.
BUS systems
To meet the current industry standards, the Tele Radio VersaTEQ remote controls are compatible with a wide range of BUS systems. A smooth cooperation with the software of your machine can be assured. The Tele Radio VersaTEQ remote controls can handle CANOPEN, MODBUS and SAE J1939.
Depending on your application you can either choose one of the two VersaTEQ Basic Line models or opt for a Custom Line solution. This offers you full freedom in configuring your hardware and software within this transmitter housing and the associated receivers. Our Tele Radio Sales Department can advise you on the best solution for your job.
VERSATEQ BASIC SPECIFICATION
✓ Frequency 2,4 GHz, 16 channels
✓ 2″ color display
✓ IP65 protection
✓ Duplex communication for feedback
✓ PLe/CAT 3, SIL3 safety level stop function
✓ Vibration for warming & alarm feedback
✓ Inpact type & twist release stop switch on the side
✓ M12 connector for cable control
✓ Illuminated faceplate
✓ LED’s in handle bar for panel illumination
✓ Re-chargeable & exchangeable batteries
✓ Up to 10 h with one battery, depending on configuration
YOUR CHOICE FOR THE TELE RADIO VERSATEQ BASIC LINE
Offering the Tele Radio quality for the best price. Suitable for most operations and fitted with standard control elements and black faceplate. The range consists of two basic transmitters and two types of receivers.

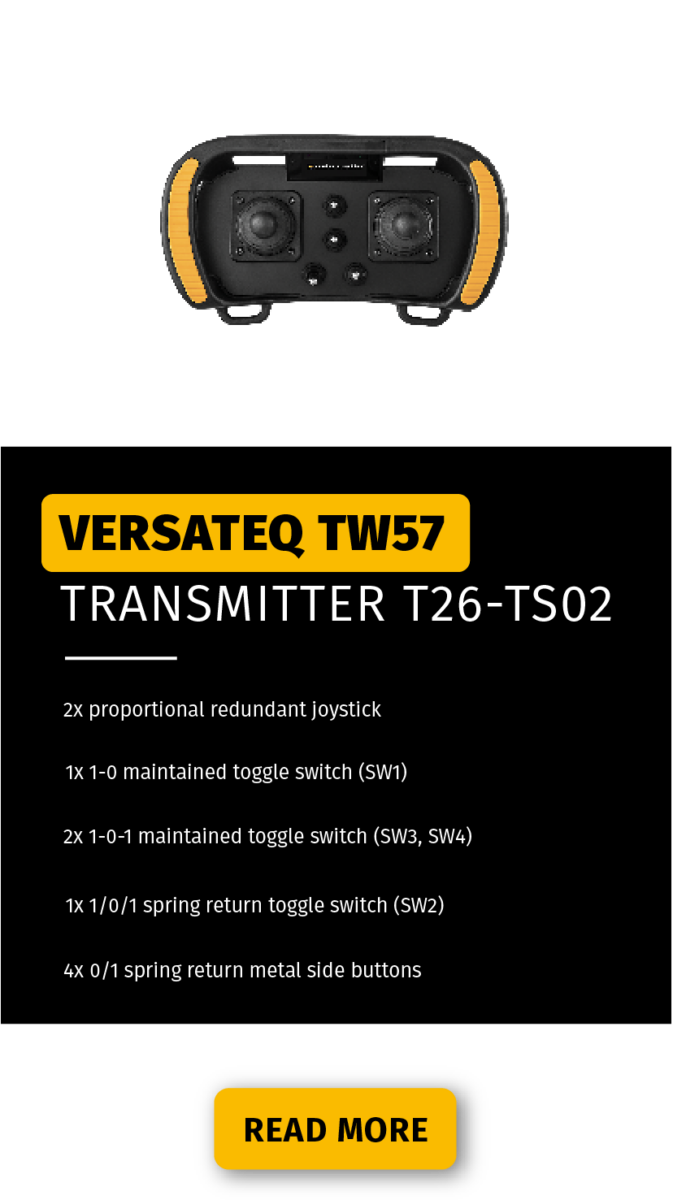

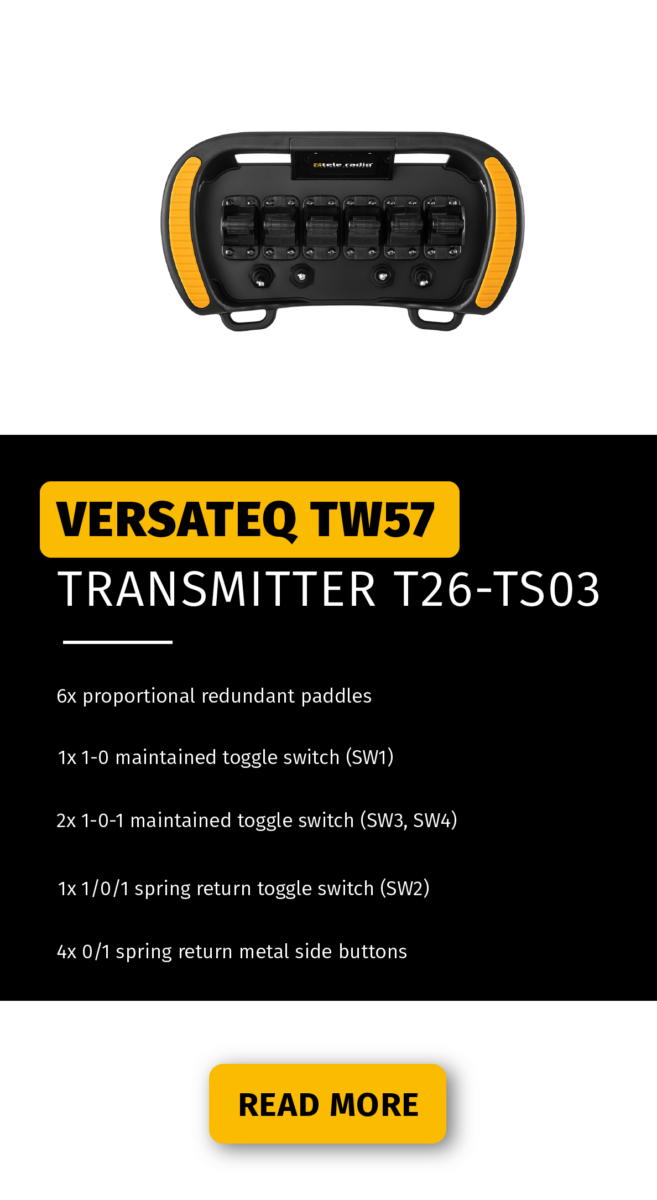

OUR TELE RADIO VERSATEQ TRANSMITTERS

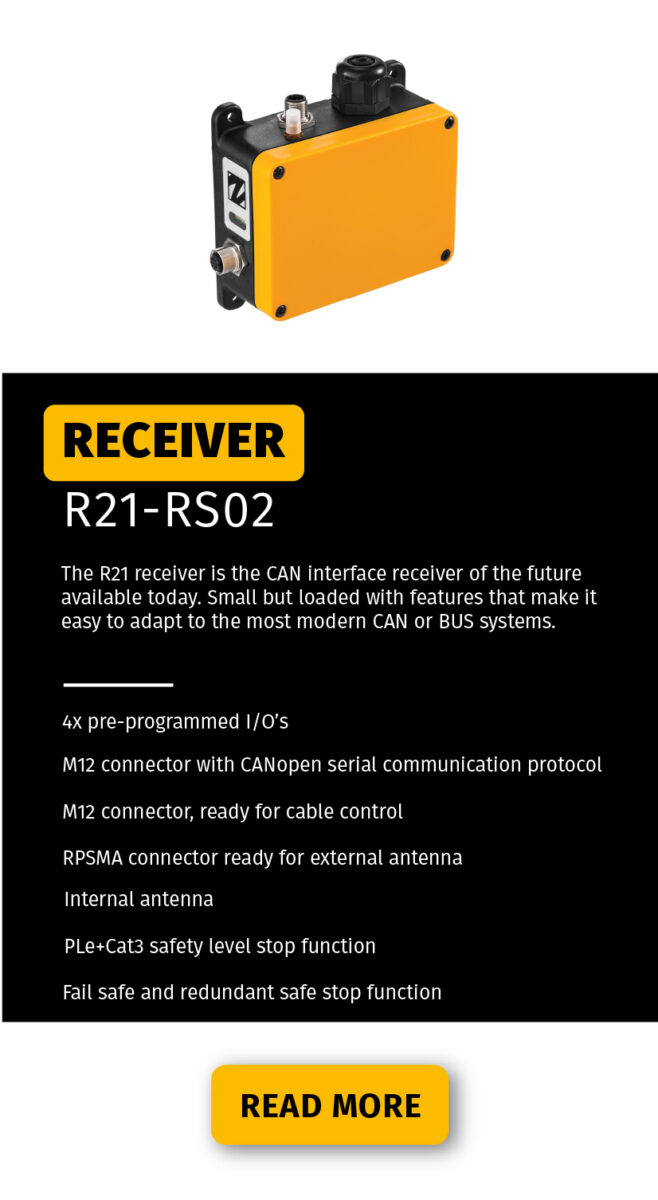

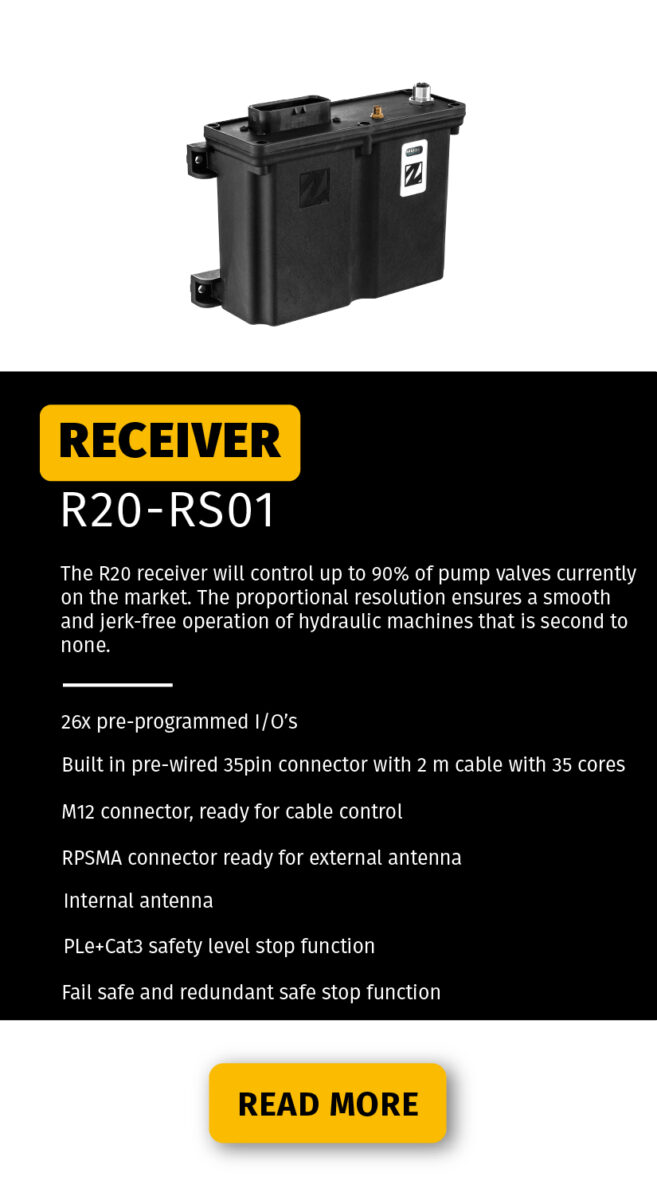

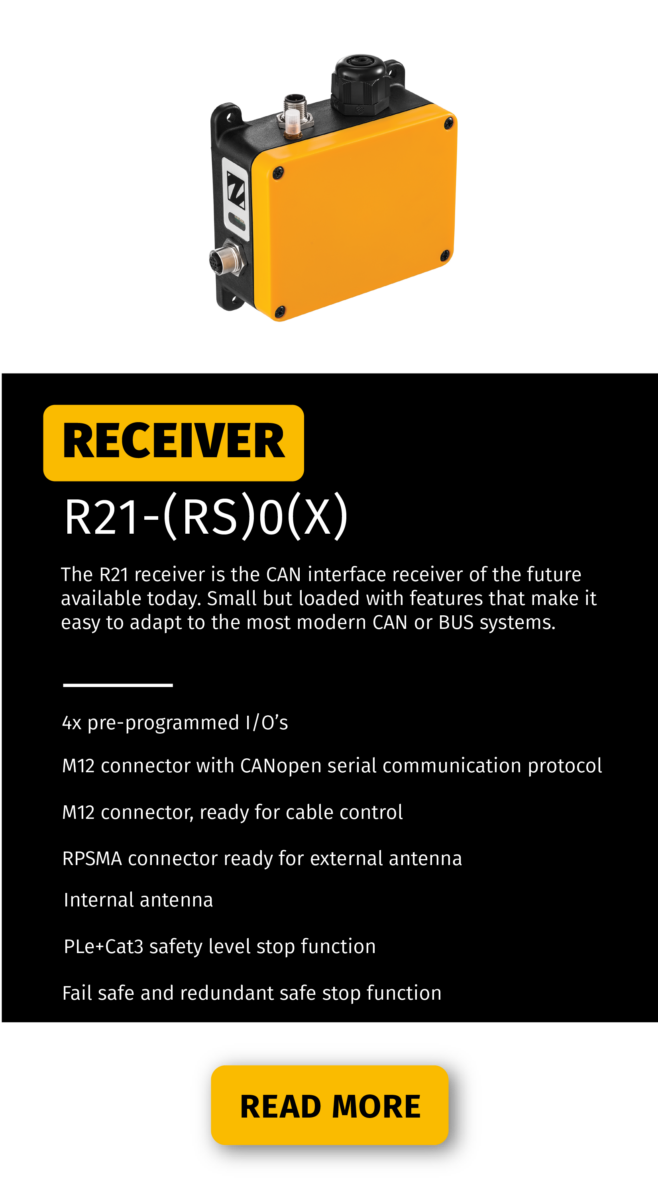

OUR MATCHING BASIC LINE RECEIVERS
THE ADDED VALUE OF OUR PRODUCTS
The solid advice of our Sales Department
Get in contact with us for advice about the best fitting system for your application.
Own Technical Service
Tele Radio has its own Technical Service Department for support, on-site installation and repair.
The various independent safety certificates
For all Tele Radio products with a safety certification, we can provide you with the approval reports from the independent testing authority. Read more about it HERE.
